รายละเอียด

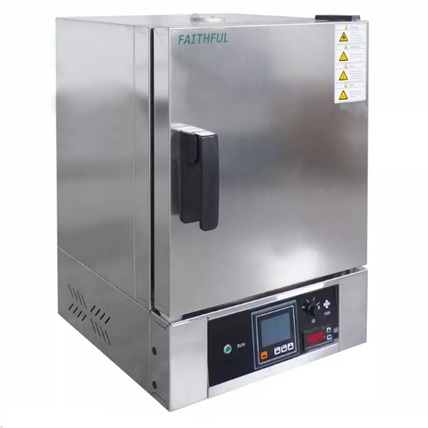

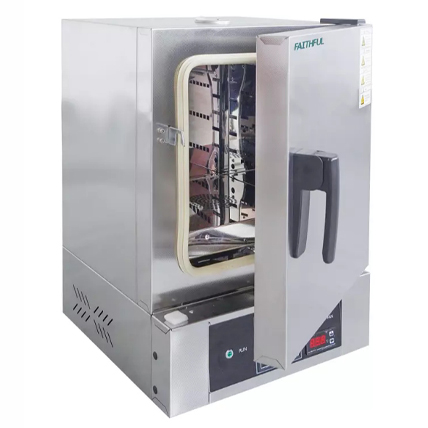

ตู้อบความร้อน Oven WGLL-BE Series ยี่ห้อ FAITHFUL
ลักษณะเฉพาะ: ตู้อบความร้อน วัสดุ แสตนเลส รุ่น WGLL-BE
WGLL-BE มีคุณสมบัติดังต่อไปนี้นอกเหนือจากฟังก์ชันข้างต้น
- ตัวควบคุมอุณหภูมิจอแอลซีดี
- ระบบป้องกันอุณหภูมิเกิน
- ย่านการใช้งาน อุณหภูมิได้ อิสระแบบ ดิจิตอลที่มีความแม่นยำสูง
- วัสดุภายใน ภายนอก ทำจากแสตนเลส
รายละเอียด
ตู้อบความร้อน Oven รุ่น WGLL-BE Series
Model |
WGLL-30BE(SUS304) |
WGLL-45BE(SUS304) |
WGLL-65BE(SUS304) |
WGLL-85BE(SUS304) |
WGLL-125BE(SUS304) |
Cycle Mode |
Forced convection |
Function |
Temp. Range |
RT+10-300℃ |
Temp. Resolution Ratio |
0.1℃ |
Temp. Motion |
±1℃ |
Temp. Uniformity |
±2.5% |
Structure |
Inner Chamber |
SUS304 |
Outer Shell |
Embossed SUS304 |
Insulation layer |
High quality rock wool board(with CE) |
Heater |
Stainless steel heater |
Power rating |
0.8kW |
1.2kW |
1.6kW |
2.0kW |
2.3kW |
Exhaust hole |
φ35mmtop(with function of test hole) |
Controller |
Temp. control mode |
Two temperature section PID intelligent |
Temp. setting mode |
Touch button setting |
Temp. display mode |
Measuring temperature display on upper LCD screen, setting temperature display on the lower screen |
Timer |
0-9999min(with timing wait function) |
Operation function |
Fixed temperature operation, timing function, auto stop. |
Additional function |
sensor deviation correction, temperature overshoot self-tuning, internal parameter locking, power-off parameter memory |
Sensor |
PT100 |
Safety Device |
High precision digital independent temperature limiter, over temperature sound and light alarm |
Specification |
Inner Chamber size(W*L*H)(mm) |
310*310*310 |
350*350*350 |
400*360*450 |
450*420*450 |
500*450*550 |
Exterior size (W*L*H)(mm) |
450*500*690 |
490*540*730 |
540*550*830 |
590*610*830 |
640*640*930 |
Packing size (W*L*H)(mm) |
550*585*845 |
590*625*885 |
640*635*985 |
690*695*985 |
740*725*1085 |
Volume |
30L |
45L |
65L |
85L |
125L |
Max Shelf number |
5 |
6 |
8 |
8 |
11 |
Load per rack |
15kg |
Shelf space |
40mm |
Power rating (50/60HZ) |
AC220V/3.6A |
AC220V/5.5A |
AC220V/7.2A |
AC220V/9.0A |
AC220V/10.5A |
NW/GW (kg) |
33/37 |
37/43 |
44/49 |
50/56 |
Accessory |
Shelf |
2 |
Shelf frame |
4 |
optional accessories |
5.0-inch true color touch screen; USB data storage |
